Sheath Wire Tinned or Bare Copper Conductor Electrical PVC Insulated AWG
Overview Product Description View more about products : https://xsdsingder.en.made-in-china.com/product-list-1.html UL27
Send your inquiryDESCRIPTION
OverviewBasic Info.
Model NO. | UL2725 |
Standard | UL758, UL1581, CSA C22.2 No.210 |
Rated Temperature(ºC) | 80ºC |
Rating Voltage (V) | 30V |
Transport Package | Rolls or as Required |
Specification | UL2725 |
Origin | China |
Product Description
Product Description
View more about products : https://xsdsingder.en.made-in-china.com/product-list-1.html
UL2725 24AWG*2C+26AWG*4C+AE PVC Insulated Cable-Rated temperature: 80ºC-Rated voltage: 30V-Reference Standard: UL758, UL1581, C22.2 No.210-Passes UL VW-1 & CSA FT1 vertical flame test.-Uniform insulation thickness of wire to ensure easy stripping and cutting.-For internal wiring of electronic and electrical equipment and appliance.
Conductor | Insulation | Jacket | Max. Cond Resistance at 20°C(Ω/km) | ||
No. of Cores | AWG | Construction(No./mm) | Diameter(mm) | Diameter(mm) | |
2 | 30 | 7/0.10 | 0.80 | 2.70 | 381 |
4 | 30 | 7/0.10 | 0.80 | 2.90 | 381 |
8 | 30 | 7/0.10 | 0.56 | 3.50 | 381 |
2 | 28 | 19/0.08 | 0.70 | 2.20 | 239 |
11 | 28 | 7/0.127 | 0.82 | 5.20 | 239 |
11 | 28 | 7/0.127 | 0.66 | 3.65 | 239 |
13 | 28 | 7/0.127 | 0.66 | 4.50 | 239 |
4 | 26 | 7/0.16 | 1.00 | 5.00 | 150 |
Dongguan XSD Cable Technology Co., Ltd (subsidiary of Shenzhen Singder Insulation Materials Co., Ltd) is a Chinese professional manufacturer with "ISO9001, IATF16949, UL, cUL, CCC" approved in Dongguan city next to Shenzhen and Guangzhou. ★Main Products: UL/cUL AWM Wires&Cables, Automotive Wire, Industrial Wire, Hook-up&Lead Wire, Solar Cable(PV Wire), Heating Wire, FFC Wire, Flat Ribbon Cable, BV, RV, BVR, RVV, RVB, AVVR, RVVP, USB Cable, HDMI, DVI, VGA, Cable Assembly, Wire Harness and so on.★Insulation Materials: PVC/PE/XLPE/LSZH/TEFLON/FEP/SILICONE RUBBER/TPU and so on.
UL AWM Listing(Line Card)
SHENZHEN SINGDER INSULATION MATERIALS CO LTD (E484953) | ||||||
Table of UL AWM Recognized Styles | ||||||
Single-conductor, thermoplastic insulation. | ||||||
1007 | 1061 | 1331 | 1430 | 1589 | 10368 | |
1013 | 1185 | 1332 | 1569 | 10070 | 10702 | |
1015 | 1330 | 1333 | 1571 | 10269 | ||
Multiple-conductor, thermoplastic insulation. | ||||||
2464 | 2517 | 2648 | 2678 | 2835 | 20276 | 21370 |
2468 | 2547 | 2651 | 2725 | 20080 | 21016 | 21513 |
Single-conductor, thermoset insulation. | ||||||
3173 | 3266 | 3289 | 3321 | 3386 | 3656 | |
3196 | 3271 | 3302 | 3385 | 3619 | ||
Multiple-conductor, thermoset insulation. | ||||||
4478 |
DONGGUAN XSD CABLE TECHNOLOGY CO LTD (E506386) | |||||||
Table of Recognized Styles | |||||||
Single-conductor, thermoplastic insulation. | |||||||
1007 | 1015 | 1061 | 1569 | 10070 | 10368 | ||
1013 | 1032 | 1185 | 1571 | 10269 | 11627 | ||
Multiple-conductor, thermoplastic insulation. | |||||||
2464 | 2468 | 2517 | 2547 | 2651 | 2725 | 2835 | 20276 |
Single-conductor, thermoset insulation. | |||||||
3173 | 3266 | 3289 | 3321 | 3386 | |||
3196 | 3271 | 3302 | 3385 | 3656 |
About us
View more about us : https://xsdsingder.en.made-in-china.com/company-Dongguan-XSD-Cable-Technology-Co-Ltd-.html
Our Clients
We are keen to talk more and support you more whether it is a deal or not. Please contact us without hesitation if you have any demands.Contact us : https://xsdsingder.en.made-in-china.com/contact-info.html
Related Products
-
PVC, XLPE Insulated Braid Shielded Bare Copper Electrical Industrial Electric Power Wire and Cable Wire
-
Sheath Wire Tinned or Bare Copper Conductor Electrical PVC Insulated AWG
-

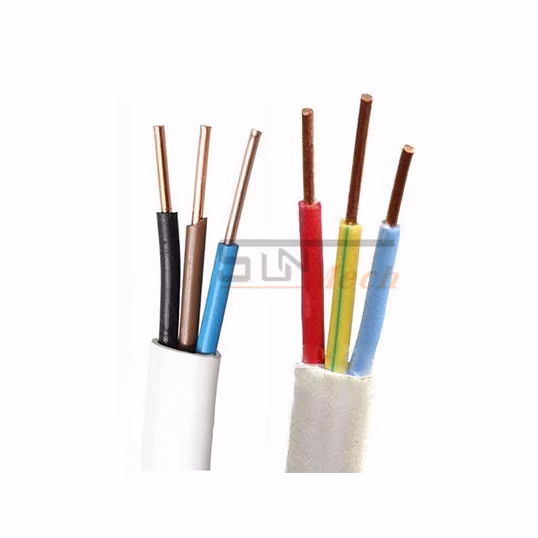

Electrical Cable Wire Building Cable House Wire Aluminum Solid Flat Single Flat Twin Bare Copper Power Cable Flexible Cable PVC Insulated Electric Wire
-
